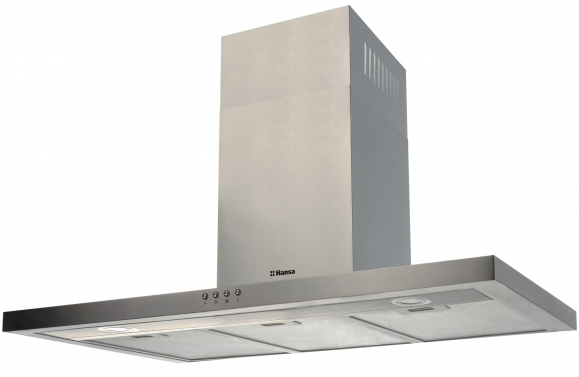

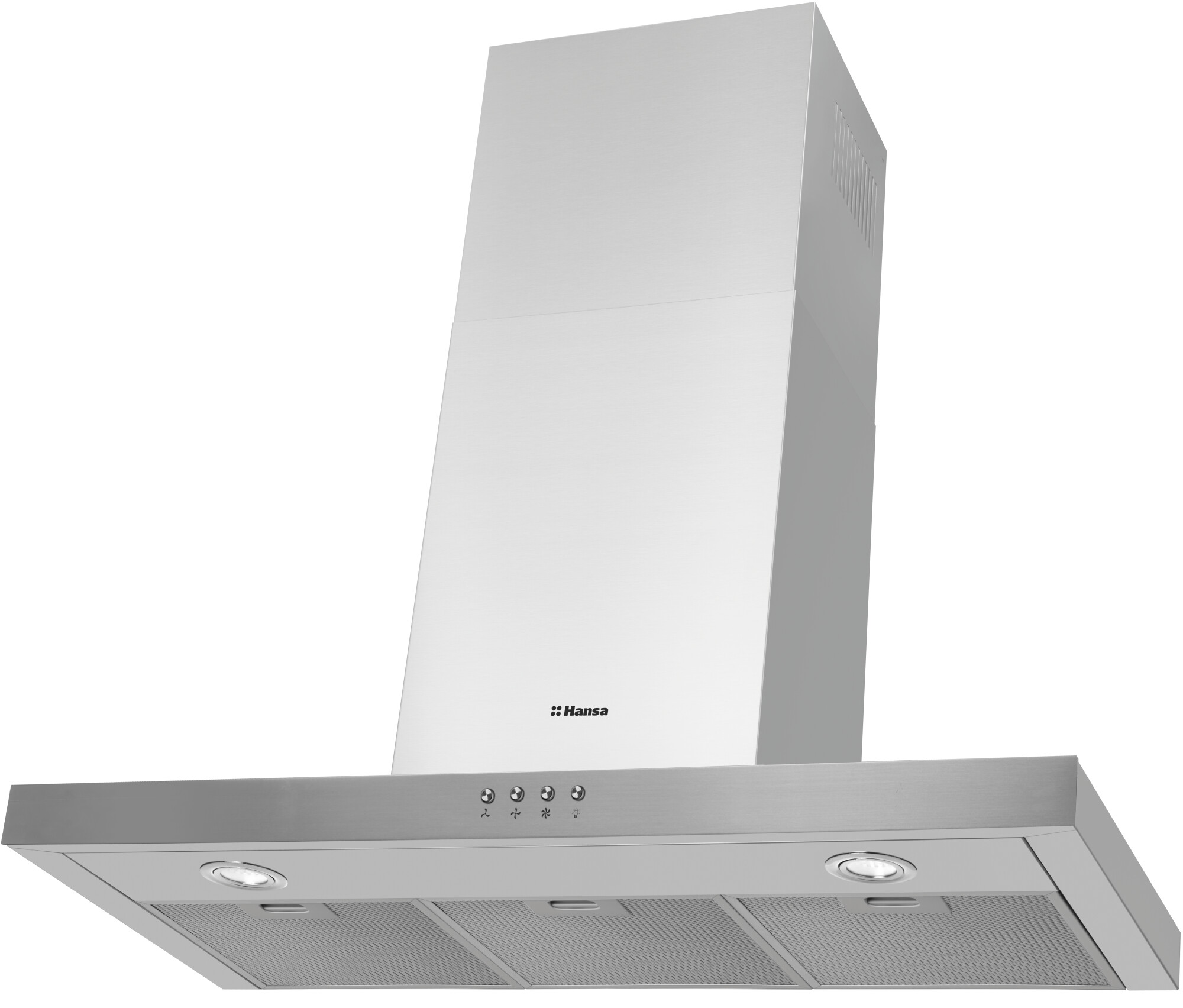

1160571 OKP931TH

1160571 OKP931TH

Carbon filter

Clean and efficient air extraction through integrated carbon filters.
(* carbon filter sold separately)
Lighting: halogen

Our hoods are equipped with halogen lights. On any model the light may be switched on even when the fan is not running. This may be used as an extra source of convenient lighting.

OKP931TH

OKP931TH

Carbon filter
Lighting: halogen

Add to comparison Delete comparison

1160571

FEATURES
- Accessories:
  Pipe
- Air flaps:
  Yes
- Montage template:
  Yes
- Panel - language version:
  Pictograms
- Protection class of electric shock:
  I_Class
- Type of work:
  Extraction/Recirculation
Equipment
- Number of carbon filters:
  1
- Number of grease filters:
  3
- Number of layers in grease filter:
  5
- Number of speed:
  3
- Type of control:
  Soft touch
- Type of grease filters:
  Aluminium frame
- Carbon filter type:
  FWP 03
Technical data
- Air flow at 1 speed - extractor by EN 61591:
  430 m3/h
- Air flow at 2 speed - extractor by EN 61591:
  540 m3/h
- Air flow at 3 speed - extractor by EN 61591:
  642 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  642 m3/h
- Air Flow at Minimum Speed in Normal Use:
  430 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP:
  396 m3/h
- Air Pressure at Best Efficiency Point P BEP:
  340.5 Pa
- Annual energy consumption:
  78 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle:
  87 lux
- Container qty 40'HQ:
  334
- Control panel on one side/two sides:
  One side
- Country of Origin on Rating Label:
  Made in PRC
- Dimensions of grease filter:
  278,5 x 211 mm
- Display color:
  Red
- Distance from light cover to wall:
  385 mm
- Distance to electric hob:
  450 mm
- Distance to gas hob:
  650 mm
- Electric Power Input at Best Efficiency Point - W BEP:
  173.1 W
- Fluid Dynamic Efficiency - FDE hood:
  21.6
- Fluid Dynamic Efficiency Class:
  C
- Grease Filtering Efficiency - GFE hood:
  82.7 %
- Grease Filtering Efficiency Class:
  C
- Internal/external motor:
  Internal
- Main lighting colour temperature [K]:
  6500
- Lighting Efficiency - LE hood:
  29 lux/W
- Lighting Efficiency Class:
  A
- Lighting Efficiency Class:
  A
- Maximum Possible Air Flow:
  642 m3/h
- Motor unit rated power:
  230 W
- Motor type/model:
  E series
- Net depth:
  500 mm
- Net height max:
  915 mm
- Net height min:
  535 mm
- Net weight:
  13.3 kg
- Net width:
  900 mm
- Noise level at 1 speed - extractor by EN 60704-2-13:
  57 dB
- Noise level at 2 speed - extractor by EN 60704-2-13:
  63 dB
- Noise level at 3 speed - extractor by EN 60704-2-13:
  68 dB
- Nominal Power of the Lighting System - W L:
  3 W
- Number of motor units:
  1
- Number units of main lighting:
  2
- Air exhaust diameter:
  150 mm
- Type of plug or cable:
  Euro plug
- Power Consumption in Off Mode - Po:
  0.34 W
- Power cabel length:
  120 cm
- Power rating:
  234 W
- Power Supply Voltage:
  230V
- Power unit of main lighting :
  2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  68 dB
- Sound Power Emission at Minimum Speed Available in Normal Use:
  57 dB
- Noise level:
  68 dB
- Time Increase Factor - f:
  1.2
- Time Increase Factor - f:
  1.2
