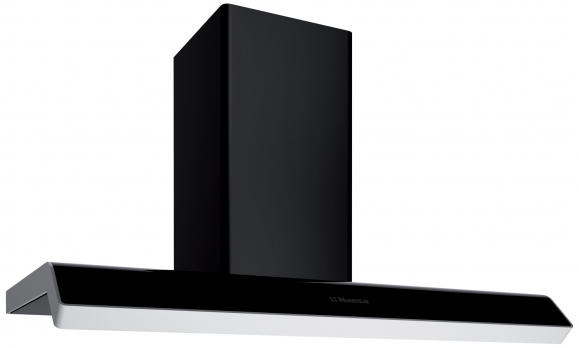

OKC 901 UBH
-
FEATURES
- Accessories -
- Air flaps Yes
- Delay Yes
- Maximum time of delay 10 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 3
- Number of grease filters 3
- Number of layers in grease filter 5
- Number of speed 4
- Type of control Sensor
- Type of grease filters Aluminium frame
- Carbon filter type FWK 280
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 276 m3/h
- Air flow at 2 speed - extractor by EN 61591 358 m3/h
- Air flow at 3 speed - extractor by EN 61591 457 m3/h
- Air flow at 4 speed - extractor by EN 61591 711 m3/h
- Air Flow at Intensive or Boost Setting [If Available] 711 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 457 m3/h
- Air Flow at Minimum Speed in Normal Use 276 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 358.5 m3/h
- Air Pressure at Best Efficiency Point P BEP 403 Pa
- Annual energy consumption 64.5 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 277 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in Poland
- Dimensions of grease filter 222.5 x 250 x 9 mm
- Display color Red
- Distance from light cover to wall 400 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 153.1 W
- Fluid Dynamic Efficiency - FDE hood 28.2
- Fluid Dynamic Efficiency Class A
- Grease Filtering Efficiency - GFE hood 68.9 %
- Grease Filtering Efficiency Class D
- Intensive or Boost Setting Auto-Off time 5 '
- Internal/external motor Internal
- Lighting Efficiency - LE hood 21.3 lux/W
- Lighting Efficiency Class B
- Lighting Efficiency Class B
- Limitation of Exhaust Air - t limit 8 '
- Maximum Possible Air Flow 711 m3/h
- Motor unit rated power 260 W
- Motor type/model S-45
- Net depth 485 mm
- Net height max 1057 mm
- Net height min 747 mm
- Net weight 20.1 kg
- Net width 900 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 53 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 57 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 63 dB
- Noise level at 4 speed - extractor by EN 60704-2-13 69 dB
- Nominal Power of the Lighting System - W L 13 W
- Number of motor units 1
- Number units of main lighting 1
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 200 cm
- Power rating 273 W
- Power Supply Voltage 230V
- Power unit of main lighting 13 W
- Sound Power Emission at Intensive or Boost Setting [if available] 69 dB
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 53 dB
- Noise level 63 dB
- Time Increase Factor - f 1
- Type of main lighting LED
