i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

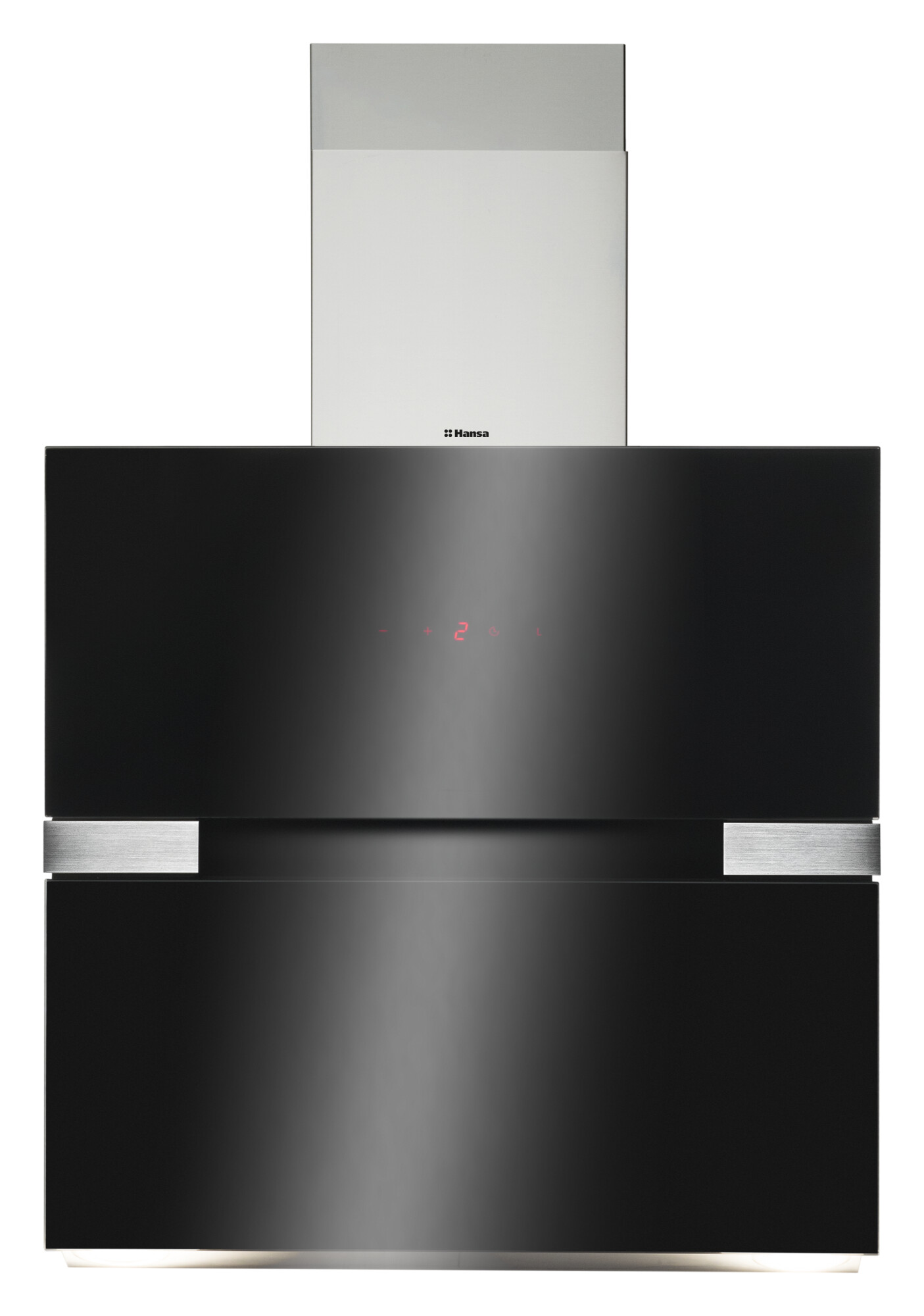

OKC6726IH
-
FEATURES
- Accessories -
- Air flaps Yes
- Charcoal filter change indicator Yes
- ChildLock Yes
- Delay Yes
- FrameOn Yes
- Filter saturation indicator Yes
- Maximum time of delay 90 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 1
- Number of grease filters 1
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Sensor
- Type of display LED
- Type of grease filters Aluminium frame
- Carbon filter type FWK 250
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 162 m3/h
- Air flow at 2 speed - extractor by EN 61591 204 m3/h
- Air flow at 3 speed - extractor by EN 61591 384 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 384 m3/h
- Air Flow at Minimum Speed in Normal Use 162 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 202 m3/h
- Air Pressure at Best Efficiency Point P BEP 165 Pa
- Annual energy consumption 66.6 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 196 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in EU
- Dimensions of grease filter 270 x 250 x 9 mm
- Display color Red
- Distance from light cover to wall 8 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 102.7 W
- Fluid Dynamic Efficiency - FDE hood 9
- Fluid Dynamic Efficiency Class E
- Grease Filtering Efficiency - GFE hood 73.6 %
- Grease Filtering Efficiency Class D
- Internal/external motor Internal
- Lighting Efficiency - LE hood 49 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 384 m3/h
- Motor unit rated power 115 W
- Motor type/model K-28 030 00 HE
- Net depth 475 mm
- Net height max 1355 mm
- Net height min 1045 mm
- Net weight 18.88 kg
- Net width 600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 46 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 49 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 62 dB
- Nominal Power of the Lighting System - W L 4 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 170 cm
- Power rating 119 W
- Power Supply Voltage 230V
- Power unit of main lighting 2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 62 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 46 dB
- Noise level 62 dB
- Time Increase Factor - f 1.7
- Type of main lighting LED
