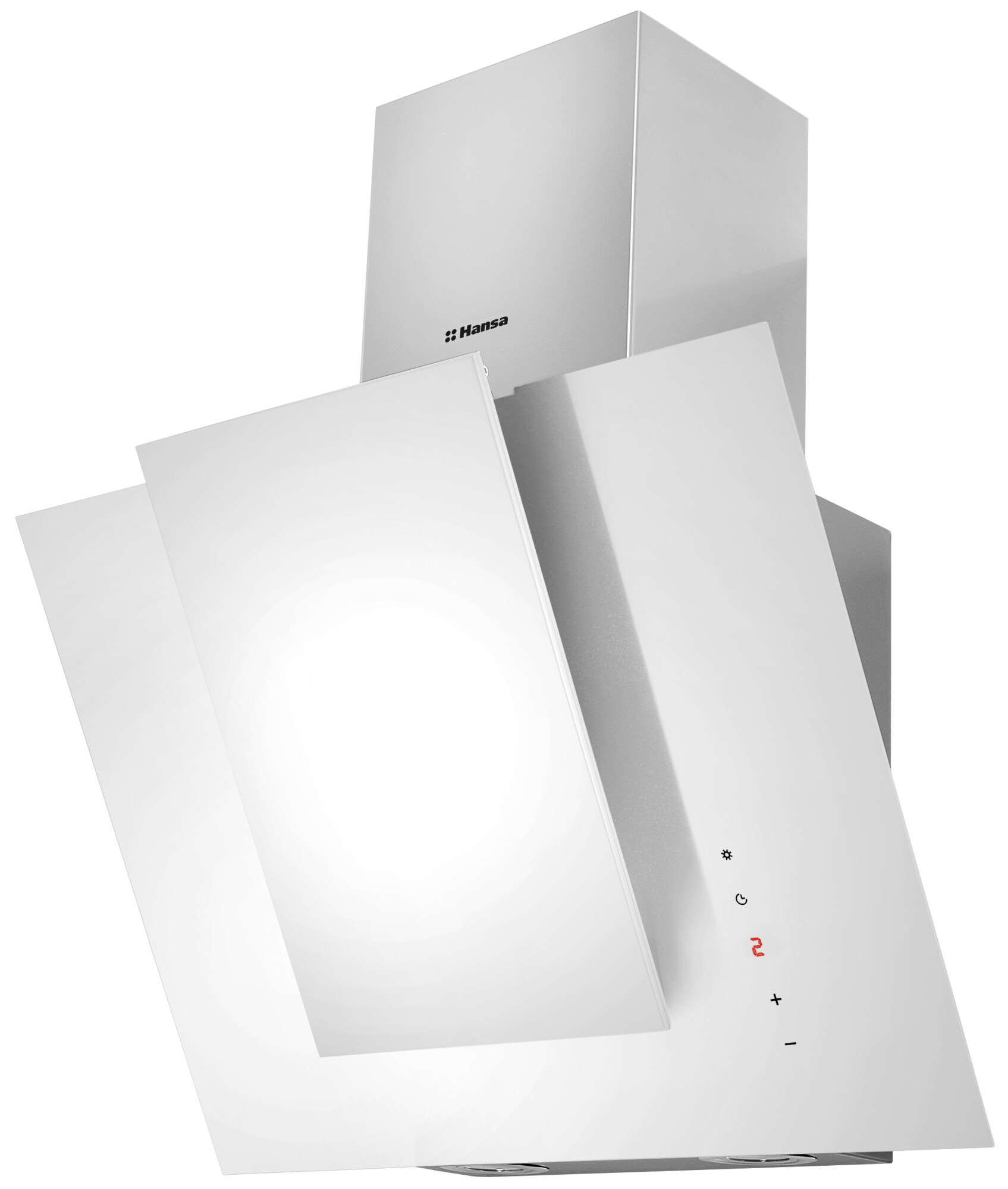

OKC655SWH
-
FEATURES
- Accessories -
- Air flaps Yes
- Delay Yes
- FrameOn Yes
- Maximum time of delay 90 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 1
- Number of grease filters 1
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Sensor
- Type of display LED
- Type of grease filters Aluminium frame
- Carbon filter type FWK 202
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 117 m3/h
- Air flow at 2 speed - extractor by EN 61591 189 m3/h
- Air flow at 3 speed - extractor by EN 61591 343 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 343 m3/h
- Air Flow at Minimum Speed in Normal Use 117 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 186.6 m3/h
- Air Pressure at Best Efficiency Point P BEP 164 Pa
- Annual energy consumption 65.4 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 186 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in EU
- Dimensions of grease filter 222.5 x 250 x 9 mm
- Display color Red
- Distance from light cover to wall 10 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 100.7 W
- Fluid Dynamic Efficiency - FDE hood 8.4
- Fluid Dynamic Efficiency Class E
- Grease Filtering Efficiency - GFE hood 68.6 %
- Grease Filtering Efficiency Class D
- Internal/external motor Internal
- Lighting Efficiency - LE hood 46.5 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 343 m3/h
- Motor unit rated power 115 W
- Motor type/model K-28 030 00 HE
- Net depth 385 mm
- Net height max 1025 mm
- Net height min 825 mm
- Net weight 14.08 kg
- Net width 600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 46 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 51 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 62 dB
- Nominal Power of the Lighting System - W L 4 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 170 cm
- Power rating 119 W
- Power Supply Voltage 230V
- Power unit of main lighting 2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 62 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 46 dB
- Noise level 62 dB
- Time Increase Factor - f 1.7
- Type of main lighting LED
