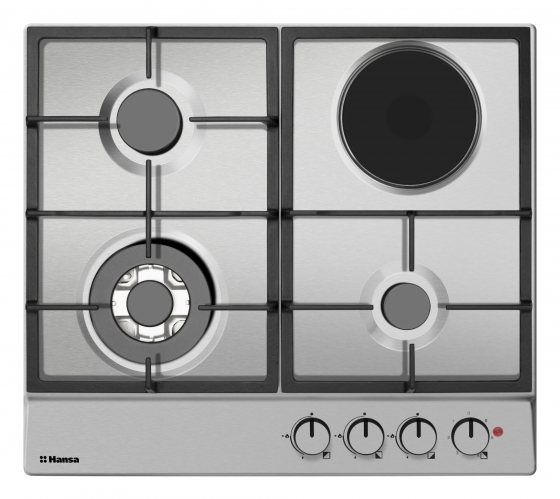

BHMI611302

21175

Design of pan supports Slider	Gas spark ignition In Knobs	Front left heating zone dimension (cm) 13.8
Left front gas burner energy effciency 55.5 %	Front left heating zone power rating (kW) 2.8	Left front zone type FL Gas
Rear left heating zone dimension (cm) 7.3	Left rear gas burner energy effciency 55.5 %	Rear left heating zone power rating (kW) 1.8
Left rear zone type RL Gas	Pan supports quantity 2	Number of power levels 6
Front right heating zone dimension (cm) 5.3	Front right heating zone power rating (kW) 1	Right front zone type FR Gas
Rear right heating zone dimension (cm) 14.5	Right rear zone energy consumption RR 194.5 Wh/kg	Rear right heating zone power rating (kW) 1	Right rear zone type RR Electric	Temperature limiter Yes	Hob energy consumption 194.5 Wh/kg
Gas hob energy effciency 55.5 %	Wok burner Yes

Frequency 50	Connection cable colour White	Connection type 1N~230 V
Cut out size - depth 490 mm	Display color Not_Applicable	Flame safety valve Yes
Gross volume 0.0525 m³	Total power of hob 1 kW	Net depth 520 mm
Net height 102.9 mm	Net weight 9.8 kg	Net width 590 mm
Number of heating elements 4	Type of plug or cable Euro 3x0.75mm2	Position of gas inlet Rear-middle-horizontally
Connection cable Power cord with plug	Power cabel length 130 cm	Power Supply Voltage 230V
Total gas power of hob 5.6 kW
